AP200 Size

Frame Fitting Size

205 x 205mm

Clear Opening Panel Size

190 x 190mm

Overall Panel and Frame Size

245 x 245mm

Cost-effective yet reliable method for providing access to concealed services and connections behind dry lined walls, ducts, ceilings (excluding AP450 & AP450KL) and cupboard units.

An ideal solution for meeting the gas safety industry and Building Regulation Part J’s concealed boiler blue inspection access requirements (non-fire rated applications).

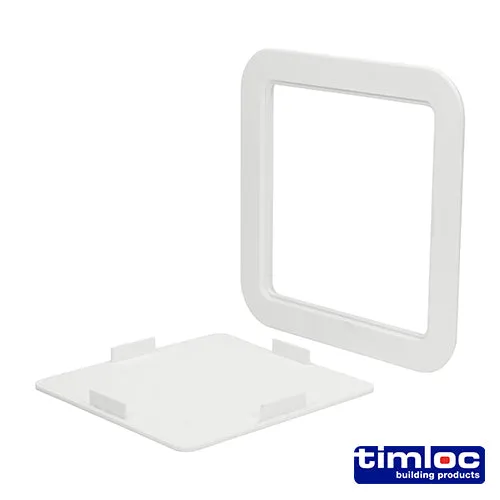

AP110 and AP200 are clip fit door panels.

AP150, AP300 and AP450 are hinged door panels.

Key lock facility available in selected sizes.

Uses:

• Cost effective yet reliable and simple method for providing access to services and connections behind dry lined walls, ducts, ceilings (exc. AP450 and AP450KL) and cupboard units
• An ideal solution for meeting the gas safety industry and Building Regulation Part J’s concealed boiler blue inspection access requirements (non-fire rated applications)

Features and Benefits

• Purpose made product saves time and money compared with traditional joiner–made or steel access doors
• Excellent aesthetic appearance and finish. Textured finish allows painting if required
• Visible picture frame surround smartly conceals cut out edges and contributes to a faster installation
• Universal door handing. Flush fitting door panel can be fully removed for maximum access.
• Installed in minutes using basic hand tools and silicon or flexible sealant
• Catch clip closing mechanism across the range as standard with key lock options available.
• Acoustic performance of 26dB

Quality

• Manufactured to BS EN ISO 9001 and BS EN ISO 14001
• Helps to meet Building Regulation document Part J (2010 edition)

Material and Colour

• Tough and UV stabilised injection moulded HIPS/ABS plastic.
• White finish.
• Installation advice
• Cut hole to size, making sure that it is straight and level.
  Apply silicon or other suitable grade building adhesive to the back of the frame.
• Check which way that you want the door to hinge.
• Press the frame firmly into place, checking it is straight and level.
• Do not operate until the adhesive has set completely.
• To open the door, use a screwdriver in the slot and lever up. To remove the door, open the door slightly and pull away from the hinge position maintaining the door at a slight angle. This does not apply to panels AP110 and AP200 which are clip fit door panels. To replace the door, reverse the removal process.

Care and Maintenance

• Clean using a soft cloth with a mild detergent.
