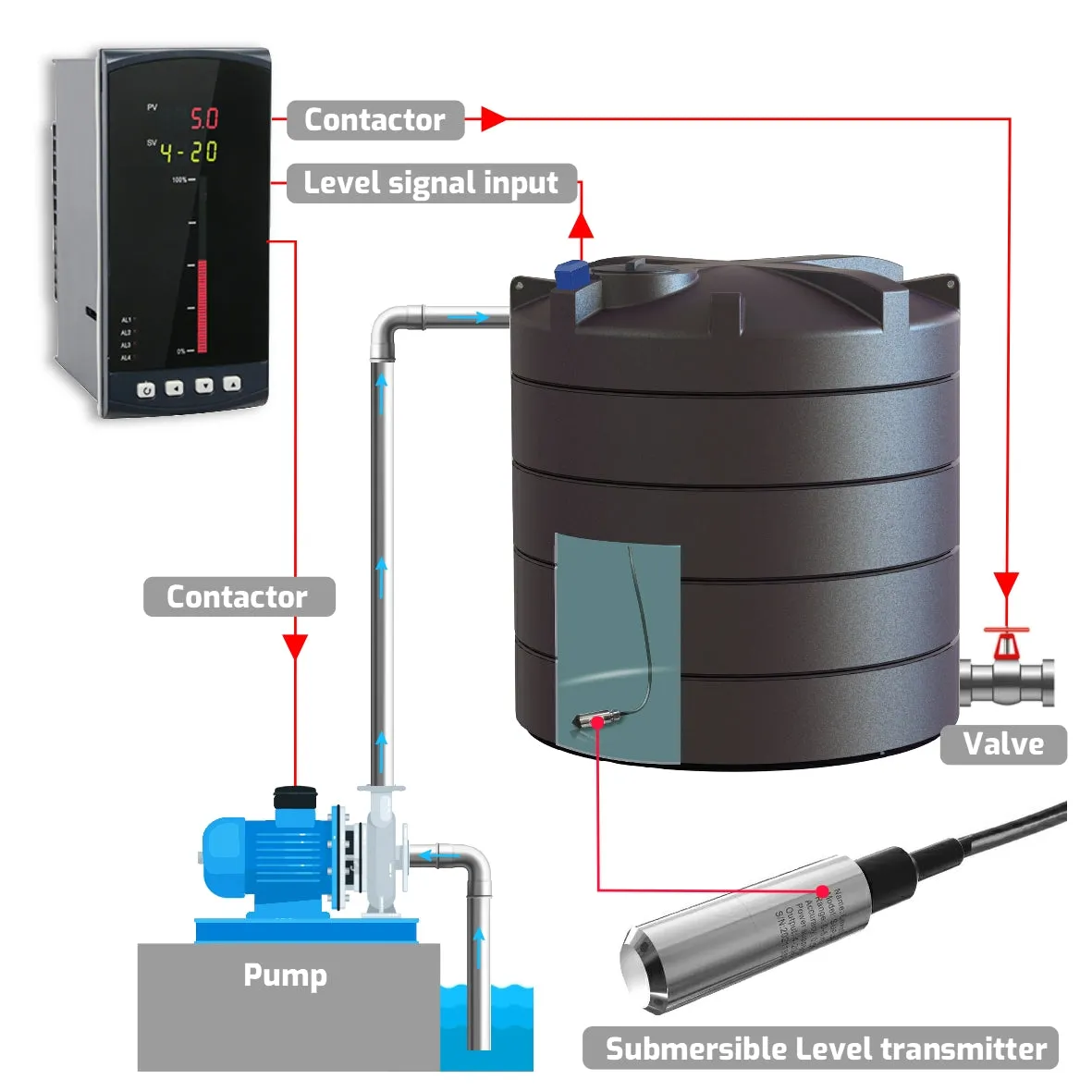

Reading and monitoring of water level in the tank using the PM panel meter and the SLT series hydrostatic sensor.

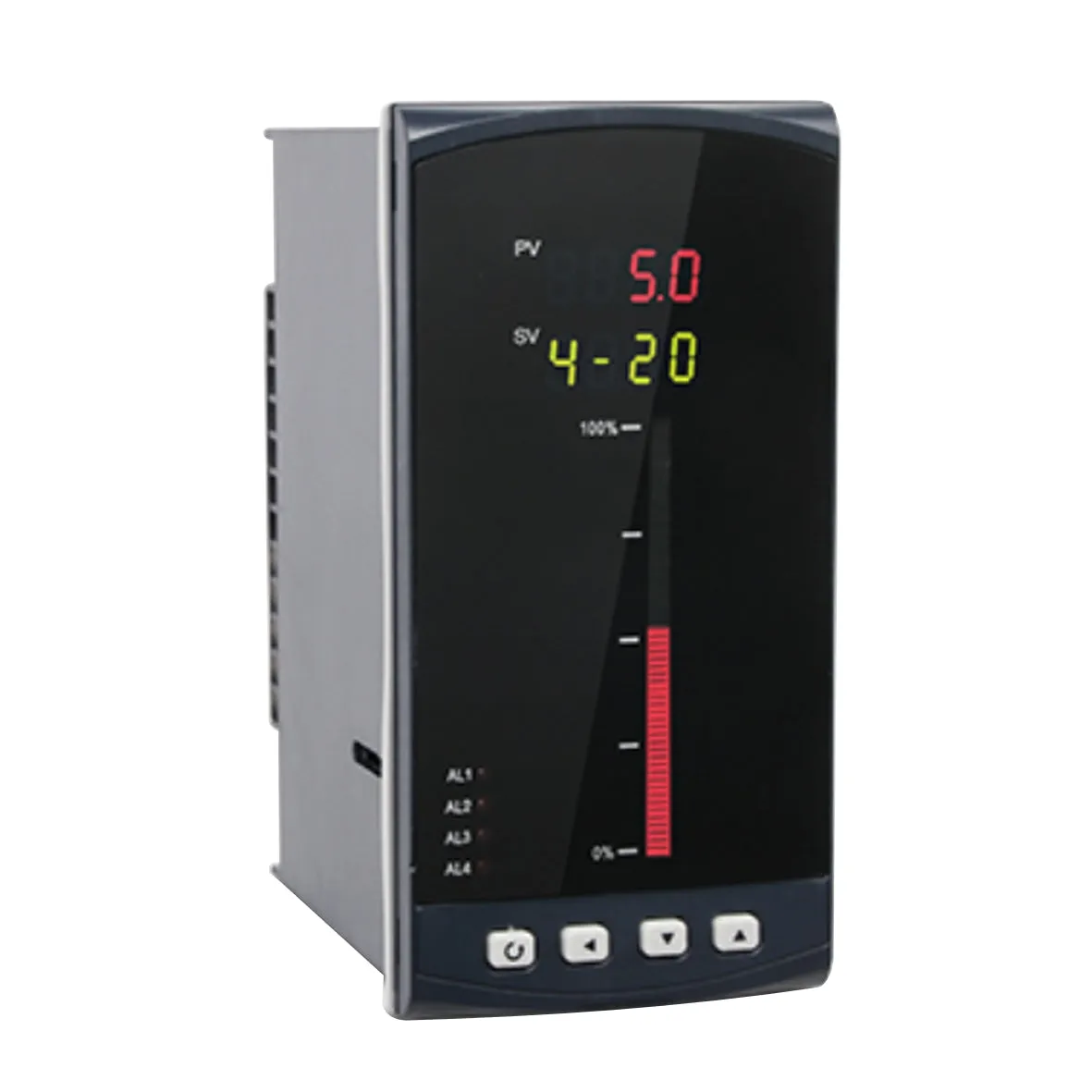

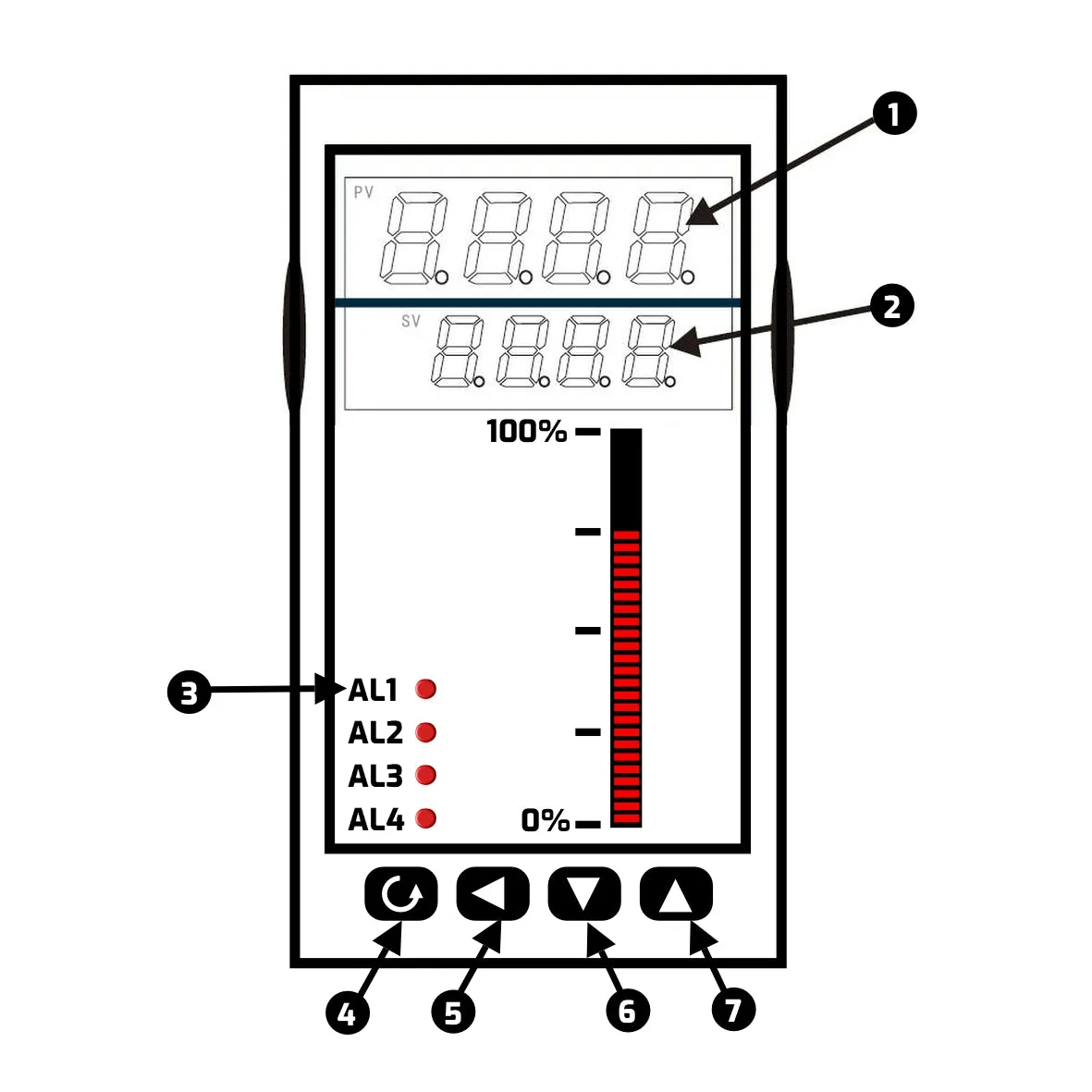

Single-circuit digital display controller provides easy operation with measurement precision of 0.3%; double four-digit LED display. Supplied as a kit ready for easy and quick installation.
Applications.
- Bulk water storage tanks
- Fire Fighting reservoirs
- Irrigation tanks
- Chemical and process tanks.
- Rainwater Harvesting
Benefits.
- Designed for bulk storage tanks with measuring range of up to 5 metres/10 metres. Panel can display level measurement in Feet.

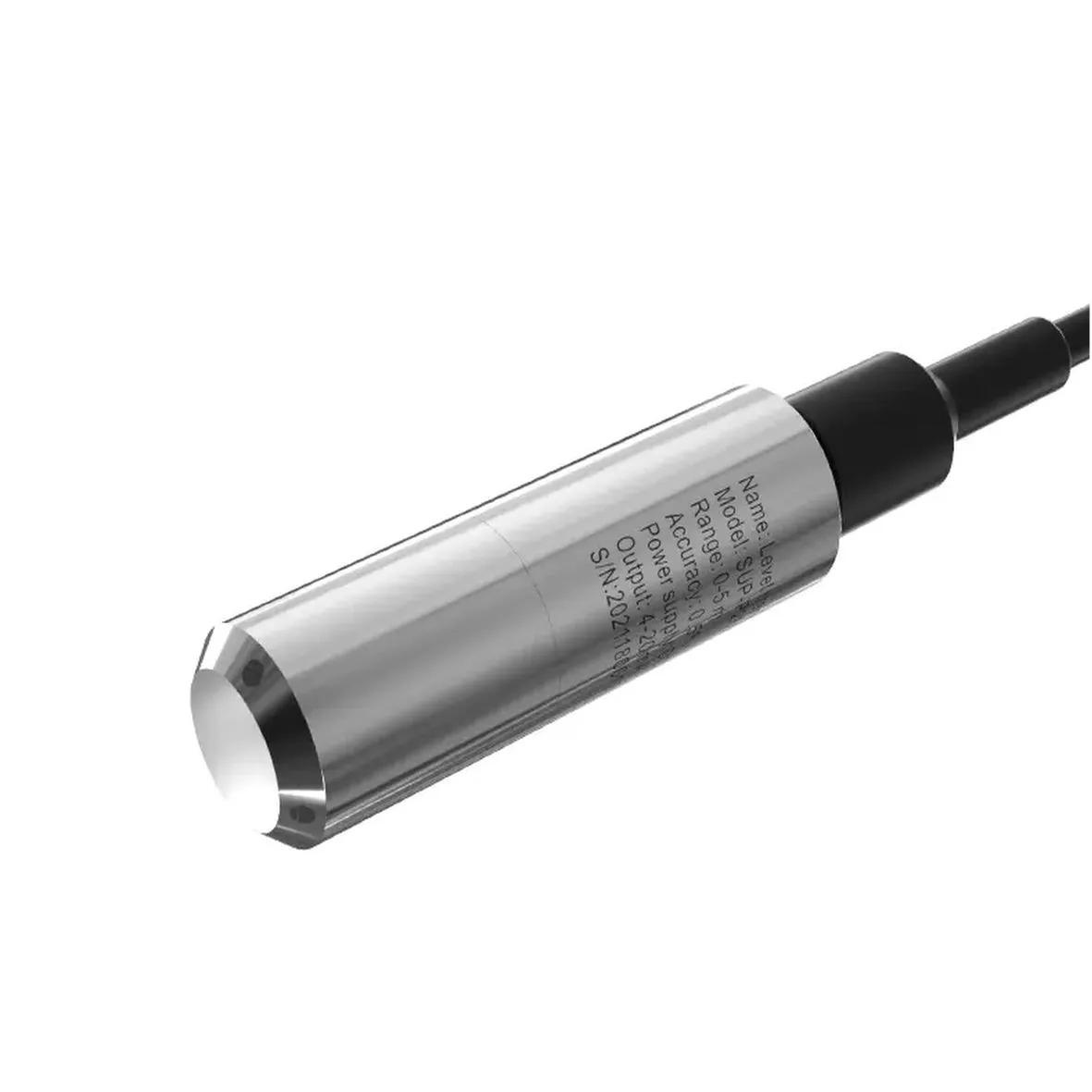

- High Quality Submersible level transmitter with 4-20mA output
- Supporting 2-way alarm, 1-way control output or RS485 communication
- Interface adopting standard MODBUS protocol, 1-way DC24V feed output;
- Photoelectric isolation between input, output and power end;
- 100-240V AC/DC or 20-29V DC switch power supply;

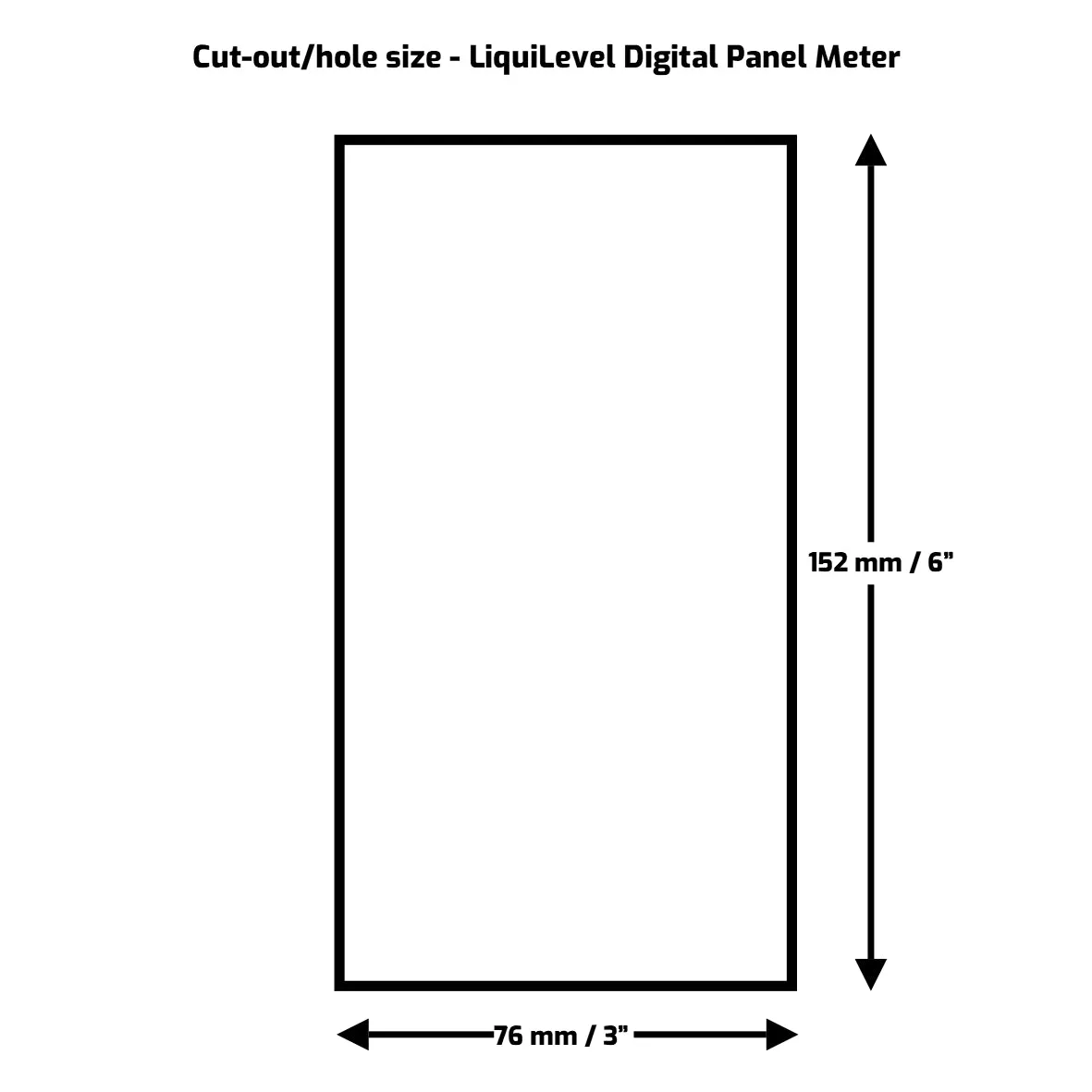

- Control Panel mount design of the Digital meter. Standard snap-in installation; (cut out size: 77x152mm)
- Operating temperature: 0-50℃,
- Relative humidity: 5-85% RH without coagulation.
for more information on the LiquiLevel SLT Submersible Level Transmitter
for more information on the Liquilevel Panel Meter
