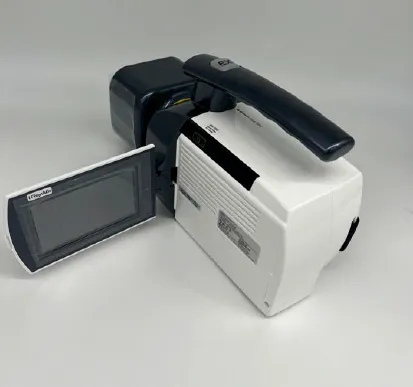

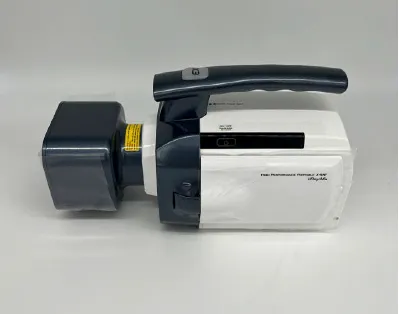

Portable X-Ray Generator

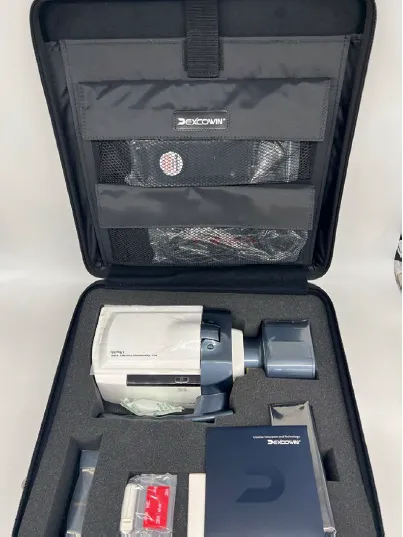

Multi-use high voltage handheld x-ray generator with 2 batteries and a battery charger and Carrying case

Rechargeable Li-polymer battery pack

• Adjustable power settings from 1 mA to 5 mA and from 50kV
• to 80 kV
• 4.3” TFT touch-screen panel display and convenient UI
• Works with other radiographic mediums: film, PSP plates,
• digital sensors and digital detectors
• More than 200 shots possible on one battery charge
• Color touch screen display
• Compact shape and size
• Meticulously sealed in lead to negate any leakage radiation
• exposure
• Easy to use, comfortable to handle
• Multipurpose: Medical, Orthopedic, Veterinary & Dental
• 5-joint arm stand available!- Optional

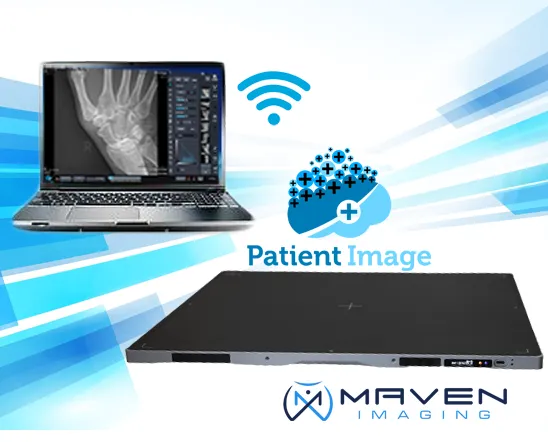

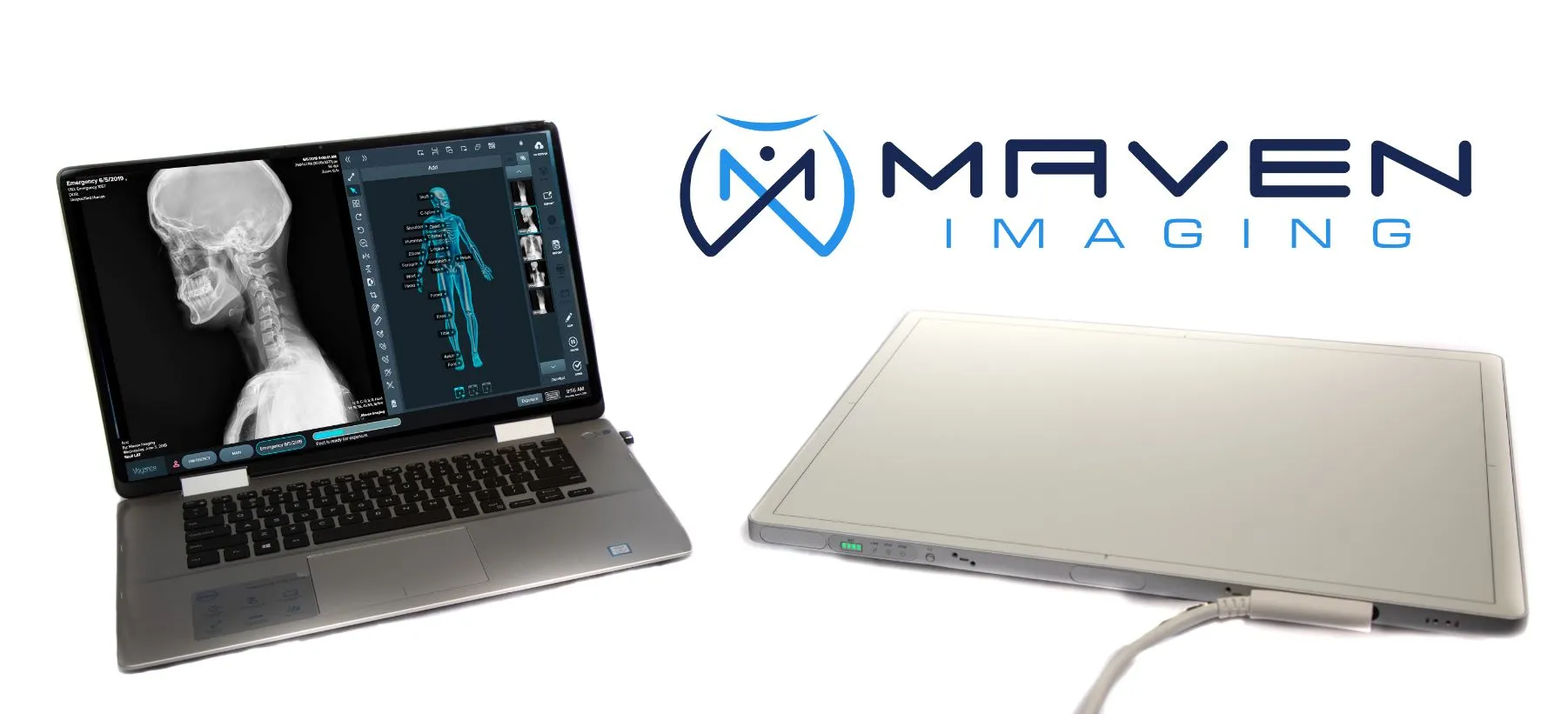

14 x 17-inch CsI Wireless, cassette size DR Flat Panel Detector, with advanced acquisition PatientImage software and PACS

System Specifications

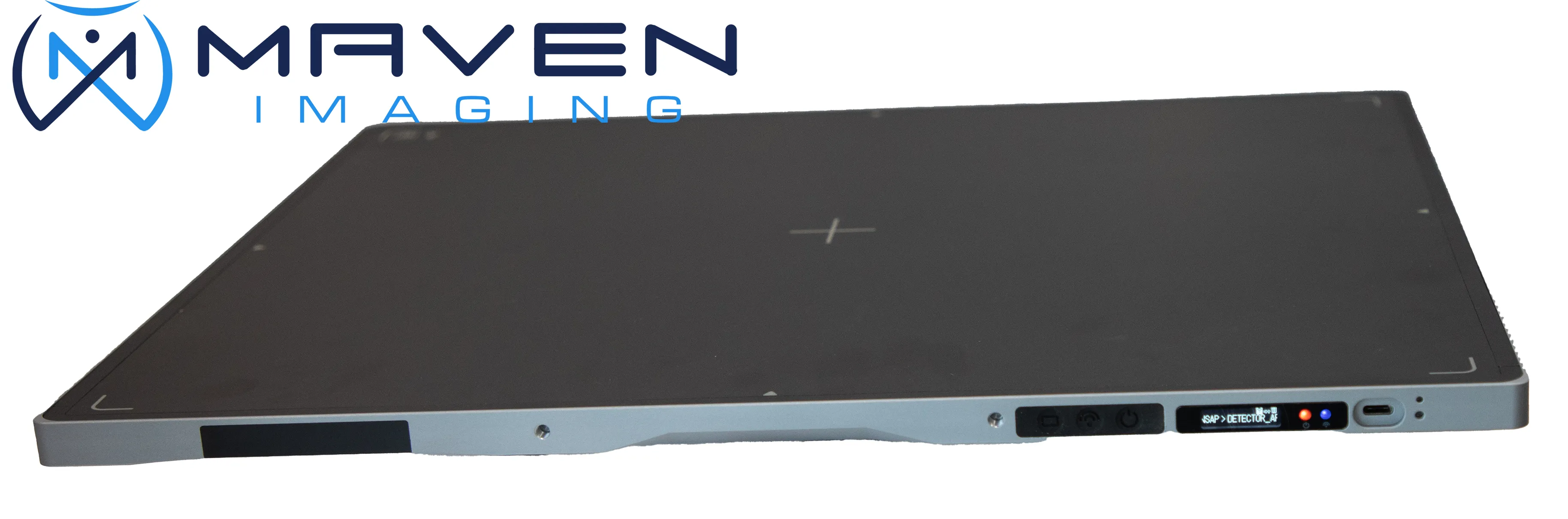

14x17 inch CsI Wireless, cassette size DR Flat Panel Detector

• Active area (Real Image Size):
• 360x430 (14x17 inches)
• Overall Dimensions: 344x459x15 mm (13.5x18x0.59 inches)
• Weight: 3.8 /- 0.25 Kg
• Power Consumption: Idle - 3.3 watts, Acquisition - 7.8 watts, Image Transfer - 10.2 watts
• Pixel Pitch: 139 μ m
• Pixel Matrix Size: 3,052 (v) x 2,456 (h)
• A/D Conversion: 16 bit
• X-ray Voltage Range: 40-150 kVp
• Wireless Modes STA or AP: 802.11 a/g/n/ac, 2x2 MIMO
• 2 Batteries, Battery Charger, and Back-up Cable Included
• Automatic Parameter Selection
• Specific Anatomical Post-processing

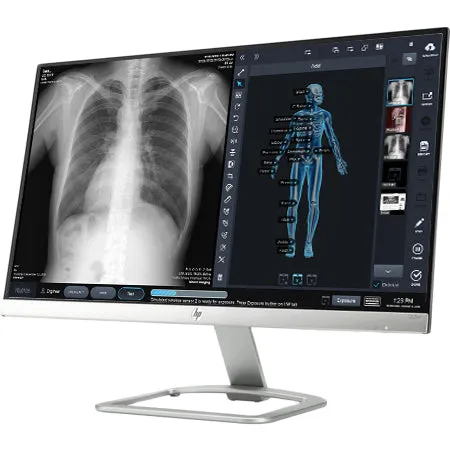

PatientImage Acquisition Software

General Features

• Superior Image Quality
• Exam-specific algorithms image processing
• Automatic image optimization
• Edit existing patient information/search patient by patient name, patient ID, Accession number, bar code, etc.
• True size for printing
• Resend / Reprint image
• Send/Print queue management
• User-friendly touch GUI
• Useful functions: Auto Cropping, Auto Grid Suppression, Auto Labeling, Auto Rotation, Free Rotation, Multi-Layout, etc.
• Fully DICOM 3.0 Compatible: MWL, Send, Print, MPPS, etc.
• Customized functions and various themes

User Interface

• User-Friendly Interface Supporting Touch Screen Functions
• One Screen to Access All Functions
• Same Interface for the Acquisition Software and Viewers
• Image Processing With Advanced Algorithm
• Fast Processing with Superior Image Quality
• Intelligent Algorithms for Sharp Edges without noise amplification
• Automatic image optimization

PatientImage PACS

PatientImage Server is a complete and cost-effective PatientImage Imaging solution that provides imaging departments with a scalable and upgradeable solution to archive patient studies.

The PatientImage Server solution includes features to archive patients, retrieve studies, print studies, edit patient reports, record voice notes with patient study, and transmit studies over telephone lines or the internet.

PatientImage Server solution consists of a group of software and hardware components that have specifically chosen to provide the maximum performance and scalability.

• Supports all DICOM modalities.
• Archiving on PACS server and on the Network.
• Multi-Level relational database structure for patients/studies/series and images.
• Supports pre-fetching and auto-routing of patients to the modalities.
• Scalable and Upgradable
• Multi-Lingual
• Easy Administration
• All DICOM Features

10 Viewer license

Dell Precision 3430 Small Form Factor (Min. Configuration):

• Intel Core i5-8500, 5 Core, 9MB Cache, 3.0GHz, 4.1Ghz Turbo w/
• HD Graphics 630
• Windows 10 Professional
• 1 TB Hard Disk
• 8 GB RAM
• 24 inch Monitor

Workstation pre-configured and with the Software installed

PatientImage DR warranty

• 5 Year Warranty on parts
• 5 Year software warranty
• Dell Computer 3 years direct from Dell Dell Monitor
• 3 years direct from Dell
• Remote phone support for 1st year from Maven Imaging.
