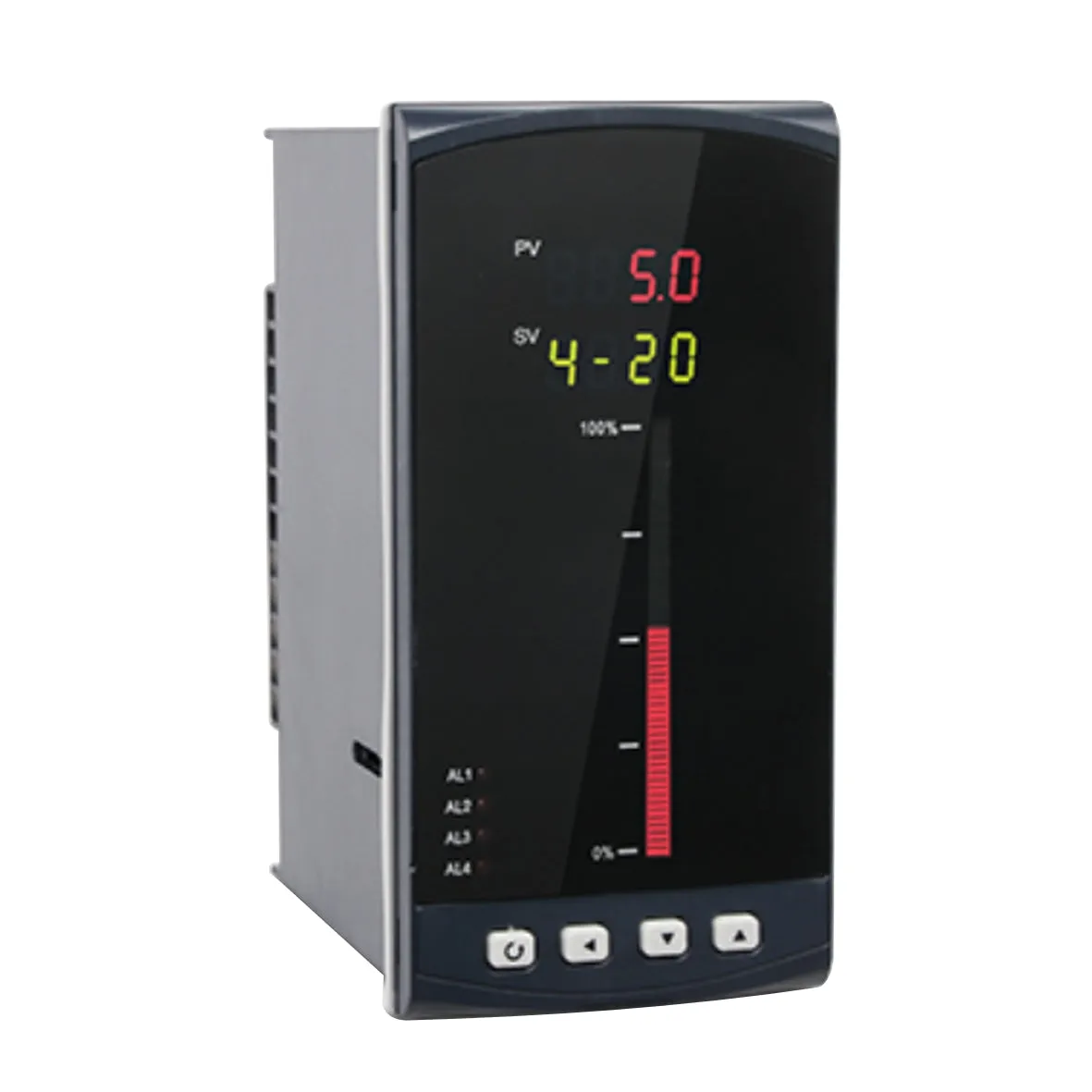

This digital display controller is suitable for measuring and controlling temperature, pressure, liquid level, available to set of internal parameters (including input types, operation mode, output types, communication parameters etc.

Features

• Single-circuit digital display controller provides easy operation with measurement precision of 0.3%.
• Double four-digit LED display, supporting thermocouple, thermal resistance, voltage (extraction operation available), current (extraction operation available), and transducer input.
• Applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc.
• Supporting 2-way alarm, 1-way control output or RS485 communication interface adopting standard MODBUS protocol, 1-way DC24V feed output;
• Photoelectric isolation between input, output and power end;
• 100-240V AC/DC or 20-29V DC switch power supply;

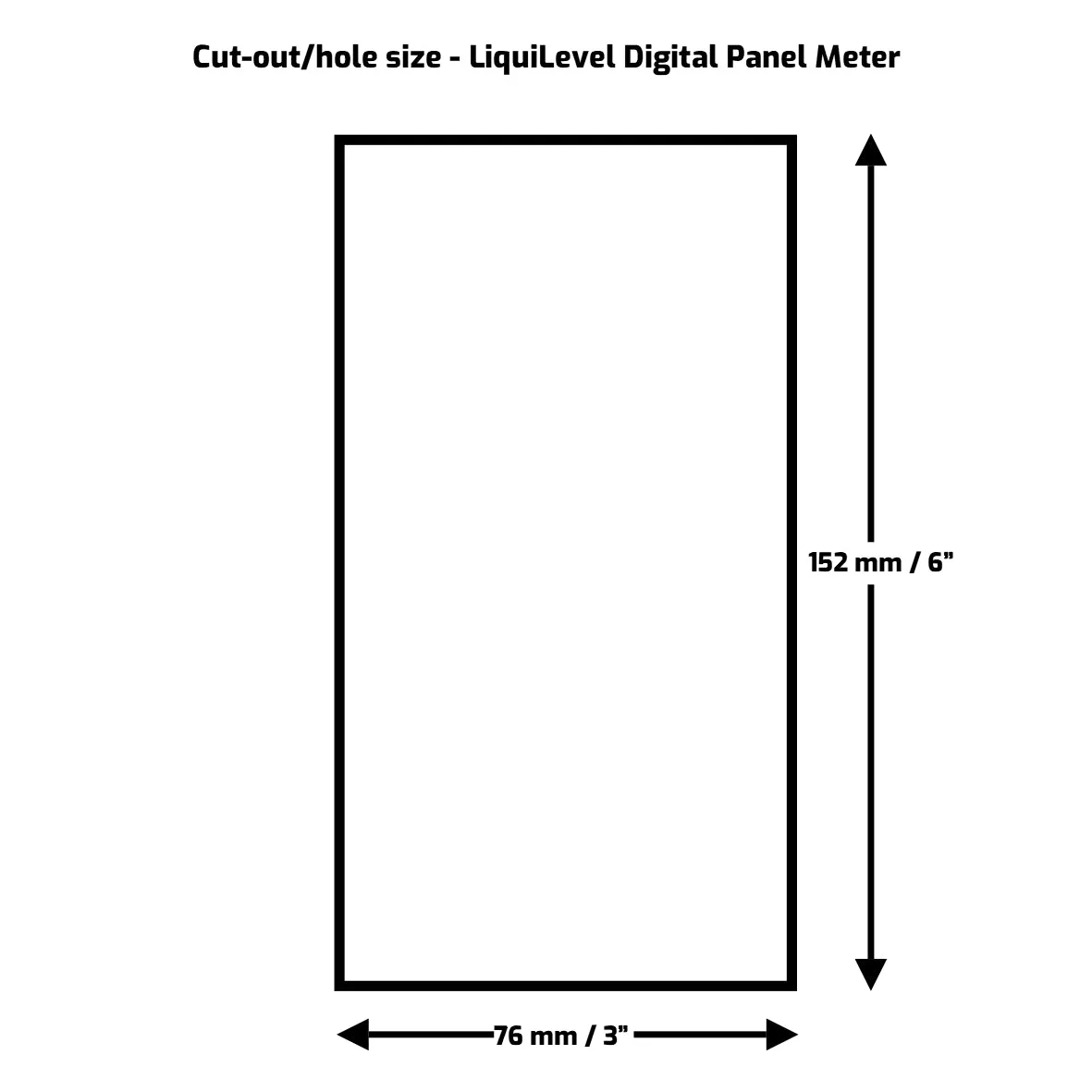

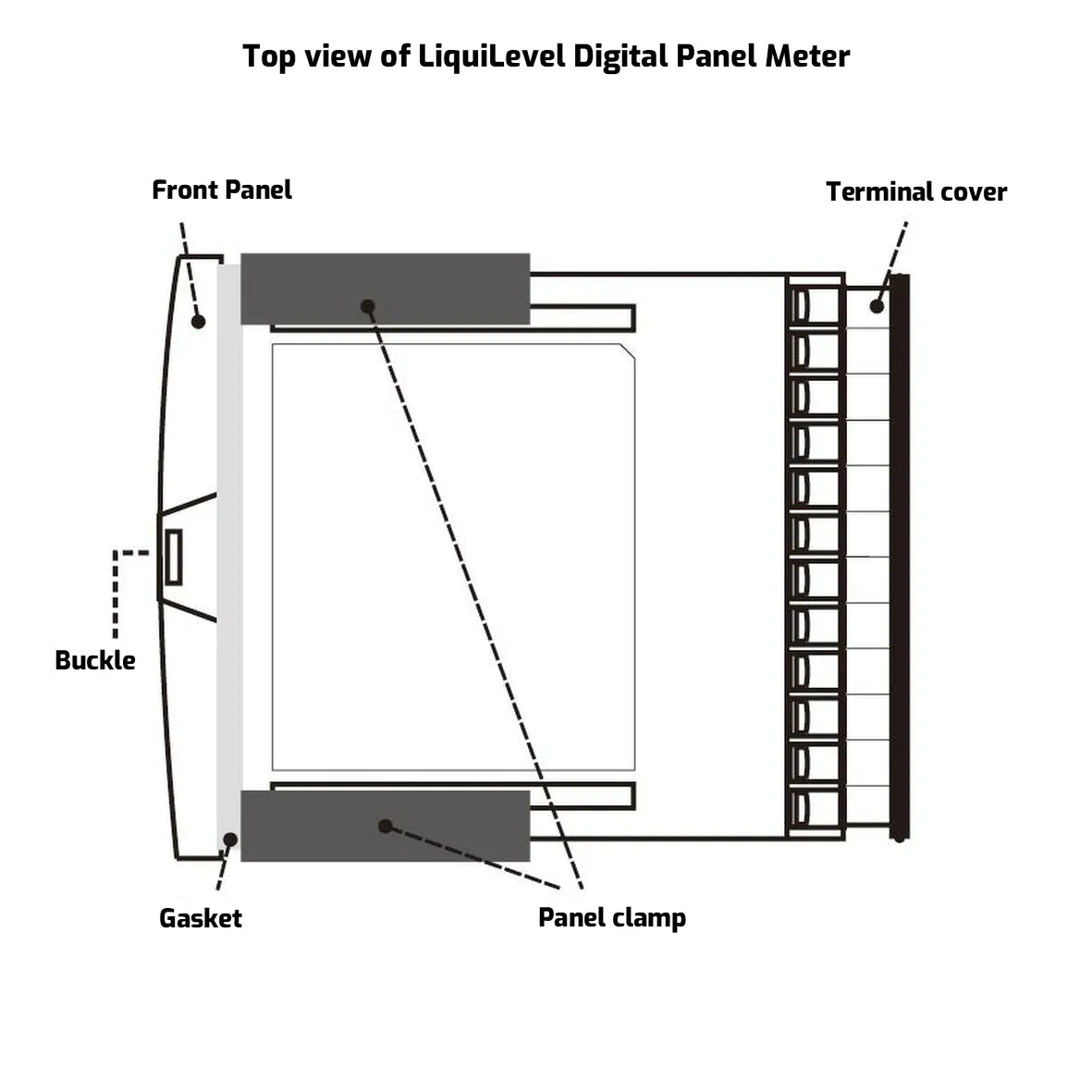

• Standard snap-in installation; Required cut-out size: 76mm x 152mm
• Operating temperature: 0-50℃, relative humidity: 5-85% RH without coagulation.

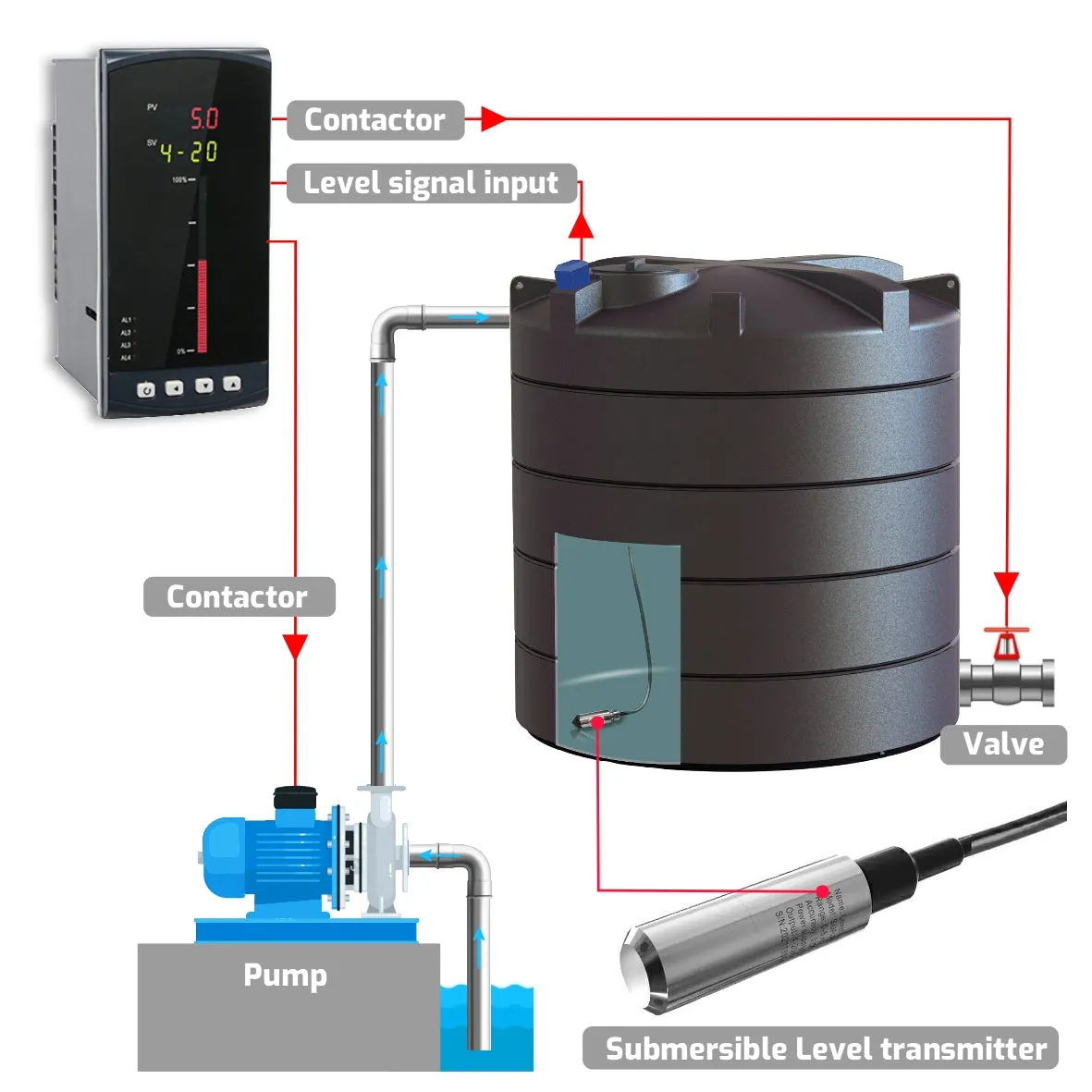

Applications.

• Bulk water storage tanks
• Fire Fighting reservoirs
• Irrigation tanks
• Chemical and process tanks.
• Rainwater Harvesting

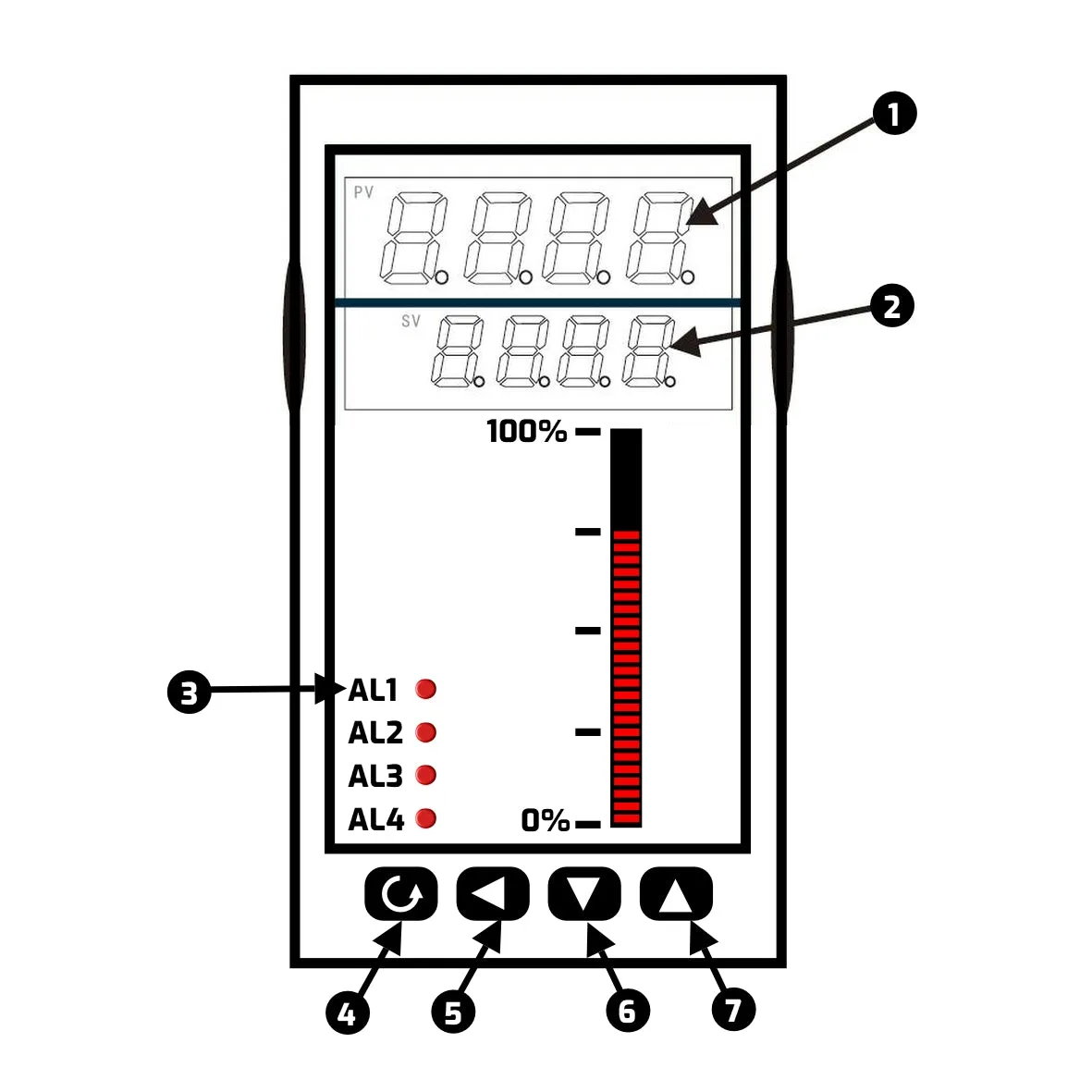

Digital Display Layout profile

1. PV Display (measured value)
2. SV Display (display parameters like input type in measurement mode. Display setting in value in parameters setting mode)
3. Primary Alarm (AL1) and additional alarm indication lights
4. Confirmation
5. Shift
6. Decrease
7. Increase
