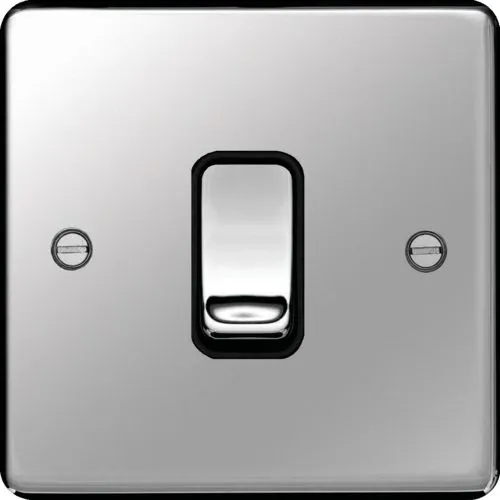

Hager WRPS12PSB Sollysta Raised Plate 10AX 1 Gang 2 Way Wall Switch - Polished Steel Black Insert
- Unique patented LOOP terminal to allow neutral looping at the switch
- Complies with BS EN 60669-1, AC only
- ‘X’ rated - No need to de-rate for fluorescent loads
- Capacity of each terminal 2 x 4.0mm² conductors
- For multi-gang switches, use of a 25mm mounting box will provide increased wiring space
- Supplied with M3.5 x 20mm long fixing screws
Specification
- Switch mode: 2 way
- Rated current: 10AX
- Depth: 24 mm
- Height: 86 mm
- Width: 86 mm
- Full cover plate
- Colour: silver optics
- Material: stainless steel
- Insert: black
- Component: with 2 fixing screws M3.5 x 30 mm
Data Sheet:
