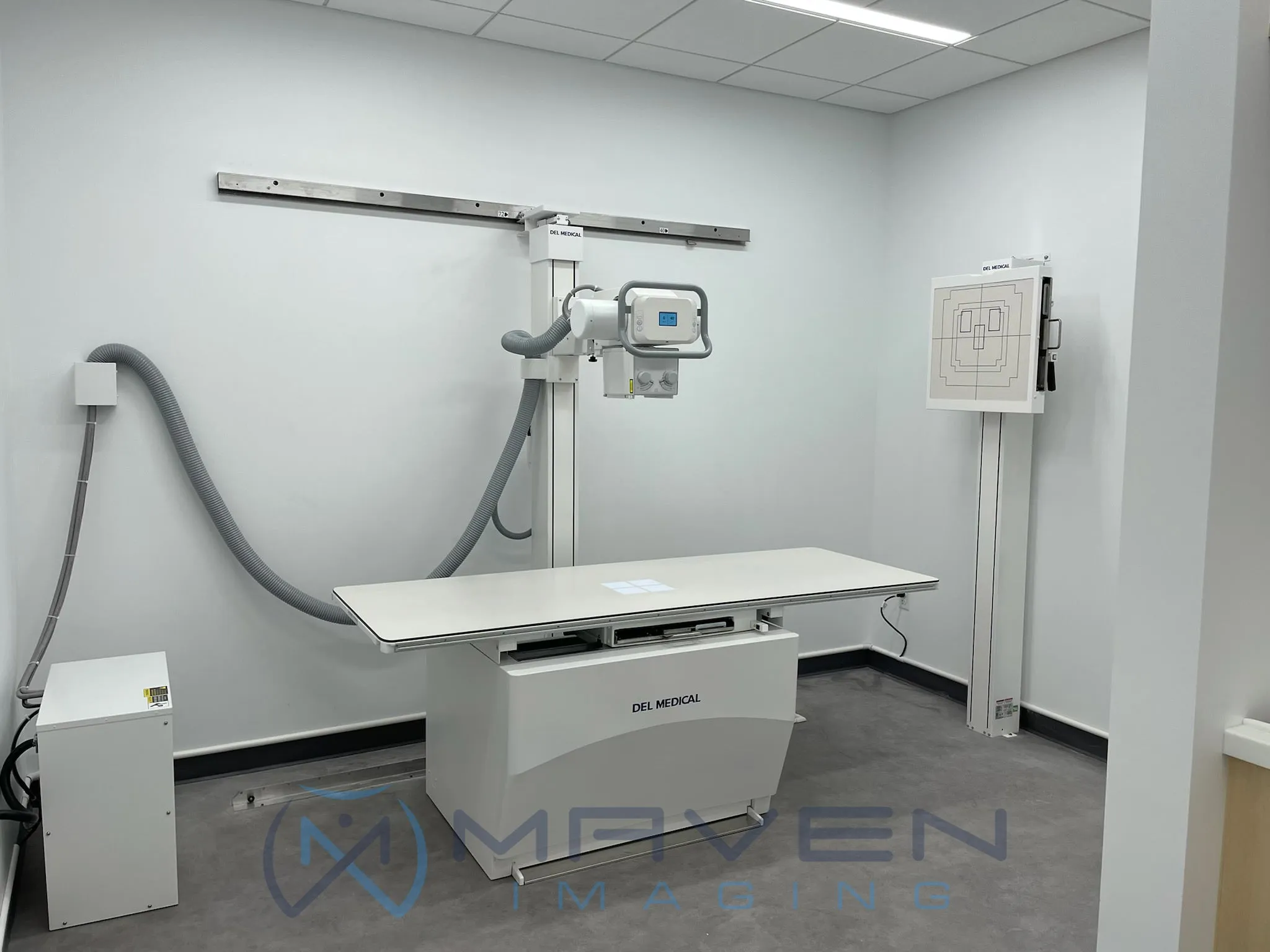

Name: Del Medical Standard floor to wall mounted FTW-FTC X-ray systems
SKU: 449841

Del Medical Floor to Wall/Floor to Ceiling Tube Mount

8ft. (244cm) Floor and Wall Rails included (standard)

Platform Tube Mount
Focal spot travel:

Transverse travel range, 9in. (23cm)

Vertical travel range, 62in. (158cm)

Minimum ceiling height, 96in. (244cm)

Maximum ceiling height, 116in. (295cm)

Pressure activated 180° column rotation
±180° tube rotation about the horizontal axis
Control buttons for the following actions: (located on the control handle)

Longitudinal, vertical, and tube rotation roll locks

Electromagnetic Locks

Ralco Certified Manual Collimator
External adjustment of mirror angulation

- High luminosity power LED for light field projection. LED cluster life: 50,000 hours
- Timer that limits cluster ON time to 30 seconds
- Radiation shielding: 150 kVp - 4 mA
- Minimum inherent filtration 2mm aluminum equivalent. (1mm on request) - Continuous film coverage from min. 00 x 00cm to max. 48 x 48cm at 100cm FFD (SID)UX- Del Medical Anthem 40kW, 500mA, High-Frequency Generator (Single or Three Phase) Item Features:
- 125kVp - Anatomical Programming updatable by SD Card or PC Connection
- LCD display provides two and three-point operation for individual control of exposure parameters
- Integrated 24 volt AC/DC power supply
- Integrated line match transformer
- Continuous kV and mA stabilization
- Automatic line voltage compensation - Tube protection software and circuitry - 208v to 480v Range

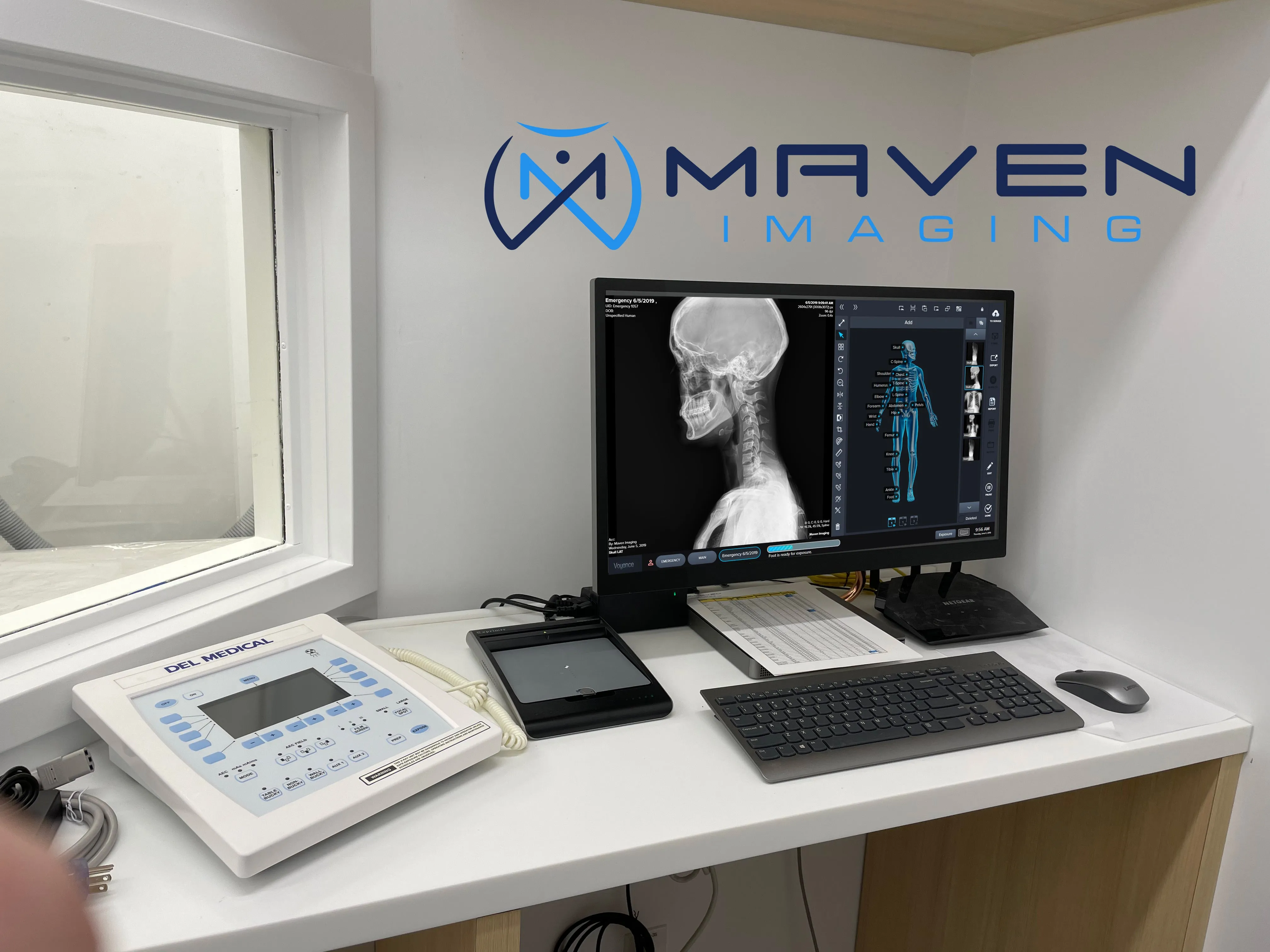

Del Medical Anthem 40kW, 500mA, High-Frequency Generator (Single or Three Phase)

Item Features:

125kVp
Anatomical Programming updatable by SD Card or PC Connection
LCD display provides two and three-point operation for individual control of exposure parameters
Integrated 24 volt AC/DC power supply
Integrated line match transformer
Continuous kV and mA stabilization
Automatic line voltage compensation
Tube protection software and circuitry
208v to 480v Range

Toshiba E7242FX Tube - 90º cable arms, 0.6x1.5mm FS, 200kHU, 125kVp, 14º target, 3 anode

GENERATOR CABLES (Part # UX-CAB-HB-25)

25ft generator high voltage cables, terminated both ends, one pair

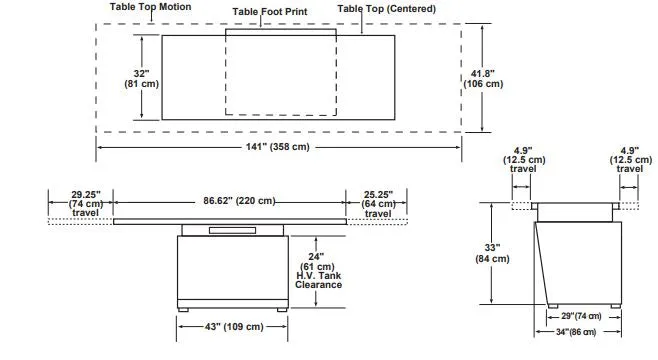

Del Medical RT100 Table with Four-Way Float Top

Item Features:

700 lb. (318kg) patient load capacity
86.5 x 31.9 Fiber-Resin table-top
40in (102cm) Longitudinal Transverse table-top movement
Foot treadle lock controls for longitudinal and transverse table-top movement
All-steel welded design for maximum strength and reliability - Grid cabinet, 17in x 17in (43cm x 43cm)
UX-TRAY-MAN - Deluxe, heavy-duty manual cassette tray
103 Line, 10:1 Ratio, 34-44" Grid

Del Medical VS100 Wall Stand (model 3546E)

Electromagnetic Locks
Dual counterweight cables for added safety
Vertical travel range of 58.38 in. (148.28cm)
Height 86.75 in. (220.4cm) (includes vertical travel)
Depth: 13 in. (33cm)
Width with the receptor, 23.25 in. (59cm)
Depth with the receptor, 13 in. (33cm)
Receptor height, 23.38 in. (59.4cm)
Maximum focal spot height, 72.38 in. (183.84cm)
Minimum focal spot height, 14 in. (35.6cm)
Weight, 258lb (117kg)
0.4mm front panel aluminum equivalency
Power Requirements, 24 V DC
ETL Listed
UX-GC - Grid cabinet, 17in x 17in (43cm x 43cm)
UX-TRAY-MAN - Deluxe, heavy-duty manual cassette tray
103 Line, 10:1 Ratio, 40-72 Grid"

WARRANTY: X-Ray System 1 Years
Anthem Generator 2 Years
X-Ray Tube 1 Year Pro-Rated

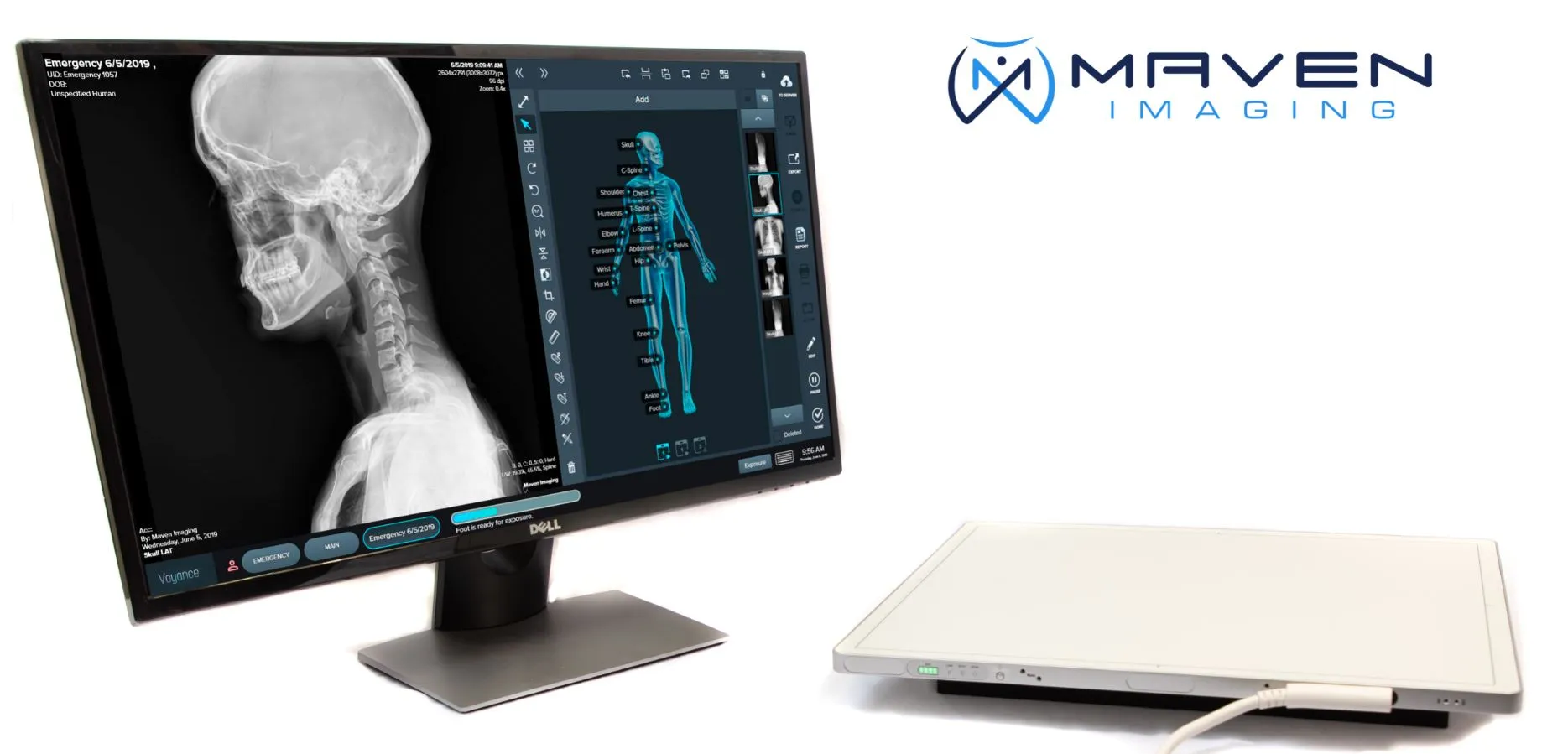

14 x 17-inch CsI Wireless, cassette size DR Flat Panel Detector, with advanced acquisition Patient Image software and PACS

System Specifications

14x17 inch CsI Wireless, cassette size DR Flat Panel Detector

Active area (Real Image Size):
360x430 (14x17 inches)
Overall Dimensions: 344x459x15 mm (13.5x18x0.59 inches)
Weight: 3.8 /- 0.25 Kg
Power Consumption: Idle - 3.3 watts, Acquisition - 7.8 watts, Image Transfer - 10.2 watts
Pixel Pitch: 139 μ m
Pixel Matrix Size: 3,052 (v) x 2,456 (h)
A/D Conversion: 16 bit
X-ray Voltage Range: 40-150 kVp
Wireless Modes STA or AP: 802.11 a/g/n/ac, 2x2 MIMO
2 Batteries, Battery Charger Cable and Back-up Cable Included
Automatic Parameter Selection
Specific Anatomical Post-processing

Patient Image Acquisition Software

General Features

Superior Image Quality
Exam-specific algorithms image processing
Automatic image optimization
Edit existing patient information/search patient by patient name, patient ID, Accession number, bar code, etc.
True size for printing
Resend / Reprint image
Send/Print queue management
User-friendly touch GUI
Useful functions: Auto Cropping, Auto Grid Suppression, Auto Labeling, Auto Rotation, Free Rotation, Multi-Layout, etc.
Fully DICOM 3.0 Compatible: MWL, Send, Print, MPPS, etc.
Customized functions and various themes

User Interface

User-Friendly Interface Supporting Touch Screen Functions
One Screen to Access All Functions
Same Interface for the Acquisition Software and Viewers
Image Processing With Advanced Algorithm
Fast Processing with Superior Image Quality
Intelligent Algorithms for Sharp Edges without noise amplification
Automatic image optimization

Patient Image PACS

Patient Image Server is a complete and cost-effective Patient Imaging solution that provides imaging departments with a scalable and upgradeable solution to archive patient studies. The Patient Image Server solution includes features to archive patients, retrieve studies, print studies, edit patient reports, record voice notes with patient study, and transmit studies over telephone lines or the internet.

Patient Image Server solution consists of a group of software and hardware components that has specifically chosen to provide the maximum performance and scalability.

Supports all DICOM modalities.

Archiving on PACS server and on the Network.
Multi-Level relational database structure for patients/studies/series and images.
Supports pre-fetching and auto-routing of patients to the modalities.
Scalable and Upgradable
Multi-Lingual
Easy Administration
All DICOM Features

Dell Precision 3430 Small Form Factor (Min. Configuration):
